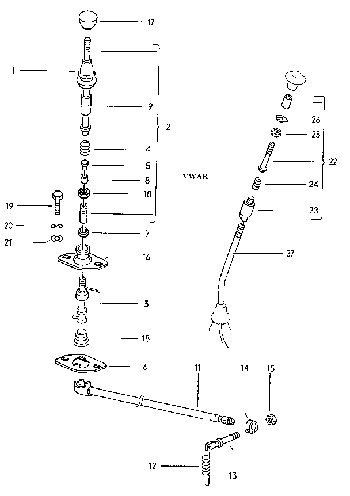

Exploded view

Gear change lever

1.	Rubber boot
2.	Upper lever assembly
3.	Lower lever
4.	Spring
5.	Contact
6.	Reverse stop plate
7.	Lower locknut
8.	Insulating sleeve
9.	Shift sleeve
10.	Upper locknut
11.	Change rod
12.	Change gate spring
13.	Change rod clamp pin
14.	Change rod clamp
15.	Change rod clamp locknut
16.	Mounting plate
17.	Gear knob
18.	Spring
19.	Mounting bolt
20.	Spring lockwasher
21.	Washer
22.	Alternative upper lever assembly
23.	Lower contact assembly
24.	Spring
25.	Locknut
26.	Clip
