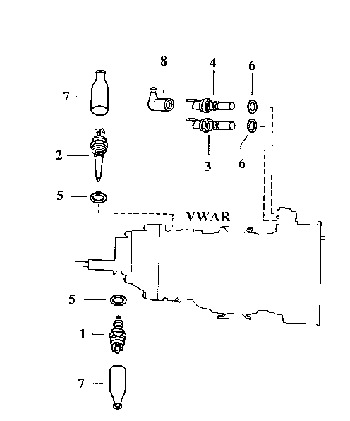

Exploded view

Switches

1. Starter inhibitor switch & idle contact

2. Selector switch

3. Temperature switch, drive range 3

4. Temperature switch, drive range 2

5. Seals

6. Seals

7. Covers

8. Covers
